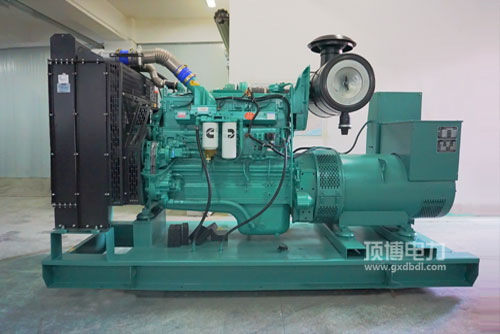

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用发起机燃料划算性好: 发达的燃料设定设备，独具特色的STC、ESTC 定级设定设备，比较特殊规划的发动机活塞上边自燃室，各类高压引射燃料，足够吸雾，自燃足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用发起机瞬态能出色: 圆满的发起机总布局设计的，协调一致康明斯特别的EFC装置，保持定位精性强，死机時间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用汽车发心理升工作电压高: 全局设汁狭窄.外观形状场地布置合理合法，电脑运行保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50耍求我国的非村道第四的阶段及北美洲Tier2. Tier 3摆放相关法律法规耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件都有机会得到性好， 打火机使用及维修定检快速，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力范畴 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯来发电用打火机的特征 ：占地小， 解压缩变高， 喷淋喷嘴气氛烧水，非常易打火，转动车载一体机电源适配器的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机主要参数	较为常用马力(kW)Prime Power	后备电源输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
